Die Cut Polycarbonate Film

Polycarbonate film features qualities like high durability, design flexibility, as well as structural integrity, which are superior to acrylic and glass products. Polycarbonate film benefits include UV & impact resistance, excellent clarity and superior electrical properties.

Learn more about Lexan sheets and Valox FR1, or contact us today discuss your polycarbonate film needs.

Lexan Film

LEXAN® films are polycarbonate films developed by GE. LEXAN® sheets are superb for applications that require a strong, impact resistant, glass-like surface. Contact Thrust Industries to help you select the right polycarbonate sheet for your application.

Electrical Films:

LEXAN® flame retardant films have UL94 V-0 or VTM-O ratings, are chemical resistant, with excellent dielectric strength, low moisture absorption and high dimensional stability. Printable and available in a selection of textures and gauges, these films can be decorated by hot stamping, flexography, offset lithography, rotogravure and letterpress technology.

Typical Applications:

  • Displays
  • Nameplates
  • Electrical insulation
  • Circuitry substrates
  • Film based EMI / RFI shields

LEXAN® FR 60

LEXAN® FR60 flame-retardant film is a clear, thin-gauge, polycarbonate film with polished surfaces on both sides. With a UL94 V-0 listing, this film meets stringent requirements in a wide range of electrical and electronic, automotive and construction applications.

LEXAN® FR65

LEXAN® FR65 flame-retardant film is a clear, thin-gauge, polycarbonate film with matte and velvet surfaces. With formability and a UL 94 V-0 listing, this film meets stringent requirements in a wide range of electrical and electronic and transportation applications.

LEXAN® FR63

LEXAN® FR63 flame-retardant film is a clear, thin-gauge, polycarbonate film with matte and polished surfaces. It offers formability for graphics applications. With a UL 94 V-0 listing, this film meets stringent requirements in a wide range of electrical, electronic and transportation applications. LEXAN® FR63 film offers ease of thermoforming, hydro-forming, embossing, die-cutting, folding and bending. It is suitable for applications such as printed circuit board insulation, backlit aircraft in-flight panels and displays, business equipment insulation, computer rack partitions and TV and monitor insulation

LEXAN® FR66

LEXAN® FR66 flame-retardant film is a clear, thin-gauge, polycarbonate film with one suede surface and one matte surface. With a UL94 V-0 listing, this film meets stringent requirements in a wide range of electrical and electronic, automotive and construction applications

FR25 LEXAN®

FR25A flame-retardant film is an opaque, thin gauge polycarbonate film with a velvet finish on one side and polished the other. FR25A offers improved score and bend fabrication capability verses LEXAN® FR700. This product is suitable for applications such as printed circuit board, backlit aircraft in-flight panels, displays, computer rack partitions and TV and monitor insulation.

Ultem

Ultem-Polyetherimide [PEI] is an amorphous thermoplastic that maintains its strength and rigidity at elevated temperatures. Its excellent electrical properties are maintained throughout temperature and frequency variations. Chemical resistance and FDA compliance make it an ideal material for numerous applications in the medical and food processing industries. In addition, its exceptional flame retardance supports aircraft/aerospace applications.

FR700

LEXAN® FR700 is an opaque black, flame-retardant, polycarbonate film. With a UL 94 V-0 listing in certain thicknesses, this film meets stringent requirements for a wide range of electrical and electronic applications.

LEXAN® FR83

LEXAN® FR83 is a clear, thin-gauge, flame-retardant, polycarbonate film. With a UL 94 V-0 (VTMO) listing, this film meets stringent requirements in a wide range of electrical and electronic applications.

Graphic Grade films

LEXAN® 8010

LEXAN® 8010 film is a polished both sides, transparent film providing clarity and distortion-free optics in all gauges. (C.U.T. of 185°F) Typical Applications: Graphic arts Control panel overlays Remote control overlays LED / LCD and backlit windows Labels / nameplates Automotive instrument clusters HV / AC overlays In-mold decorating.

LEXAN® 8030

LEXAN® 8030 polycarbonate film offers excellent clarity, with high heat resistance and dimensional stability for graphic arts applications that require excellent performance. Derived from one of the world’s toughest polymers, LEXAN 8010 film also provides high-gloss surface finishes while meeting additional requirements for added UV stability.

LEXAN® 8040

LEXAN® 8040 polycarbonate film offers radiation stability and clarity with high heat resistance, thermo-formability and autoclave stability to meet sterile FDA approved medical packaging requirements. Available from .007″ to .030″ up to 48″ wide, LEXAN® 8040 film complies with FDA regulations and meets USP-VI criteria.

LEXAN® films are also available in a hard coat. Designed for the most demanding applications, these hard-coated films are manufactured in grades that provide chemical and abrasion resistance. They are available in four gloss levels that range from matte to glass-like. LEXAN® HP12X film is low gloss and matte/polished surfaced; LEXAN® HP40X film has a medium gloss and a fine matte/polished surface; LEXAN® HP60X film is medium-high gloss with ultra fine matte/polished surface; LEXAN® HP92X film has a high gloss and is polished/polished surfaced.

die cut polycarbonate film with adhesive

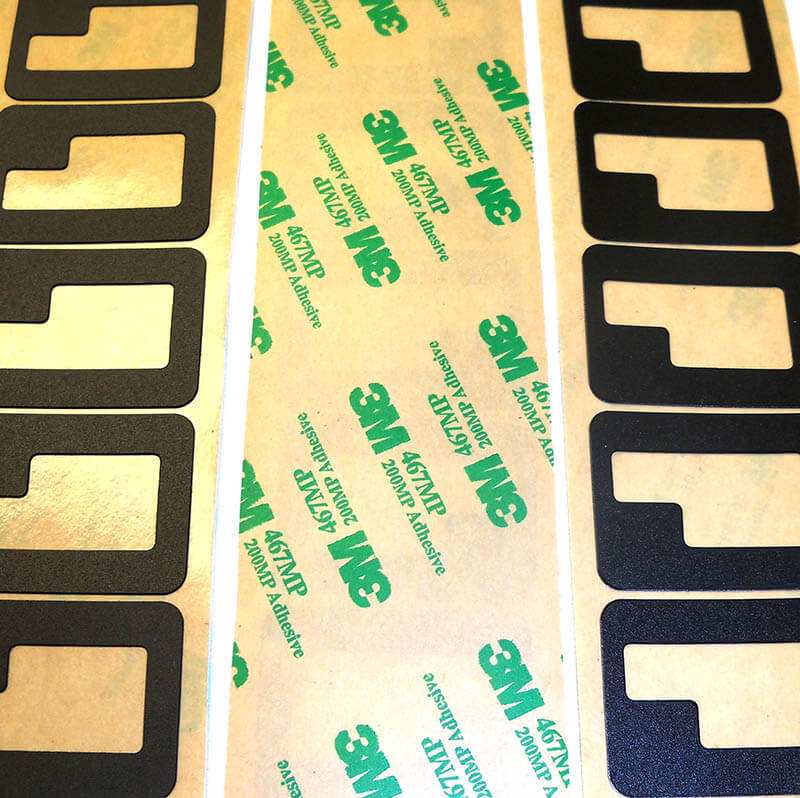

Die Cut Polycarbonate Film Lexan FR700 with PSA

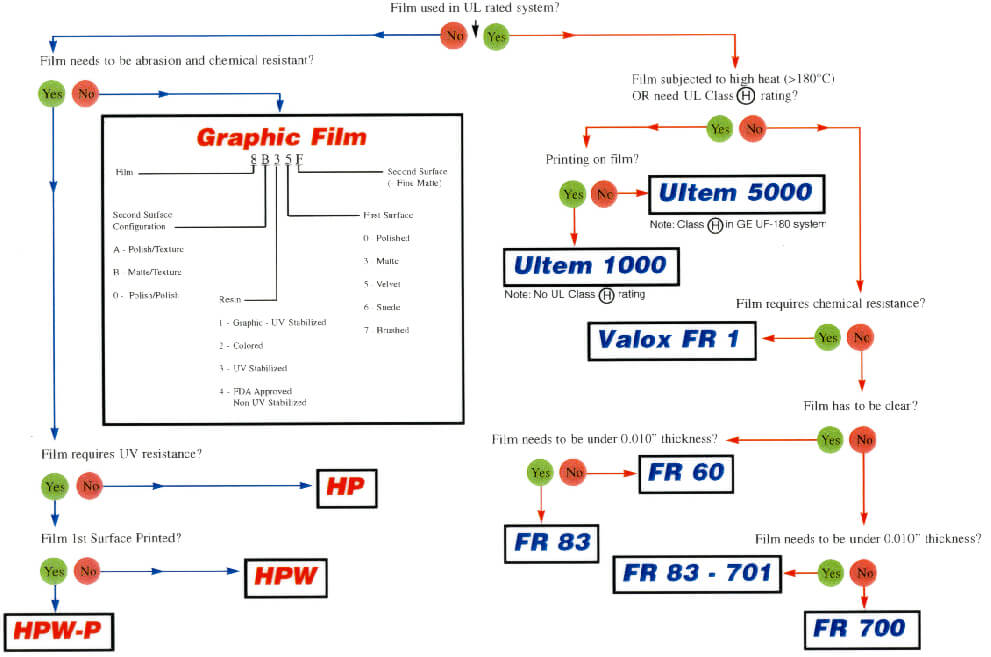

polycarbonate chart
